Magnetic Level Indicator

Magnetic Level Indicator

Magnetic Level Indicator

The Magnetic Level Indicator is a reliable and maintenance-free solution for continuous level indication in tanks containing liquids. It operates on the principle of magnetic coupling between a float inside the chamber and an external indicator, ensuring clear and accurate level visualization without direct contact with the process fluid.

Kategoriler:

Açıklama

Magnetic Display

 It is composed of sequential array of magnet sensitive flaps in the aluminium profile.
Top / Bottom / Side Flange DN 32 / PN 16, 304 St.St. Opt.316 St.St. , PVDF

Ø 140 / PN 40 , 304 St.St. Opt.316 St.St. , PVDF

Ø 195 / PN 100 , 304 St.St. Opt.316 St.St., PVDF
Body Material Ø 60.3 x 1,5 / 2 / 3 / 3,5 mm

304 St.St. Opt.316 St. St.

Ø 63 x 3 mm, PVC, PVDF

Ø 63 x 2 mm, Titanium
Seal Material Klingrid Opt. PTFE and graphite
Side Pipe Material 3/4″ 304 Stainless Steel

Opt.316 Stainless Steel / PVC, PVDF
Connection Flange

DN 20 / PN 16, Carbon Steel

Opt. 304 / 316 Stainless Steel / PVC / Titanium, PVDF
Drain Screw Material 1/2″ BSP
Bolt / Nut / Washer

304 Stainless Steel / 316 Stainless Steel

M12 x 45 mm / M16 x 70mm 304 St.St.
Optional

Magnetic Contact

Analog Output

Scale

Drain Valve

Liquid Level Relay

Local Digital Display

Heating Jacket

Special Design

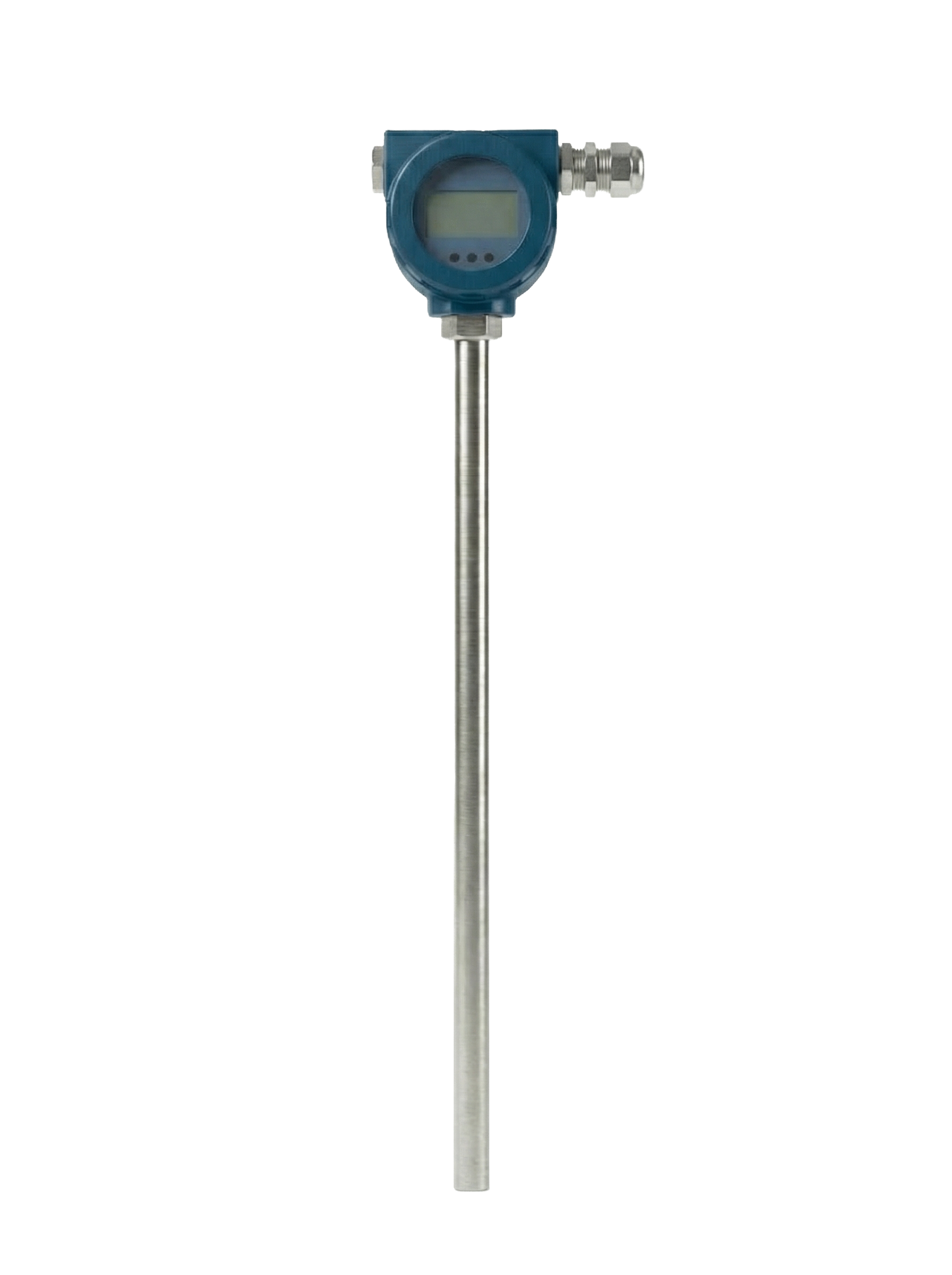

SAMPLE MODELS : RM- GLG-T3



Models RM- GLG-T3
Tube Material 304 Stainless Steel
Measure Distance 15 mm, 10 mm or 5 mm
Power Supply 10…36 VDC
Operation Temp. (-) 40 °C…(+) 150 °C
Output 2 wire 4-20 mA
Contact 2 x PNP – NA
Electrical Connect.

Terminal
Optional —
Mechanical Connec. Attached to the body with clamp.
